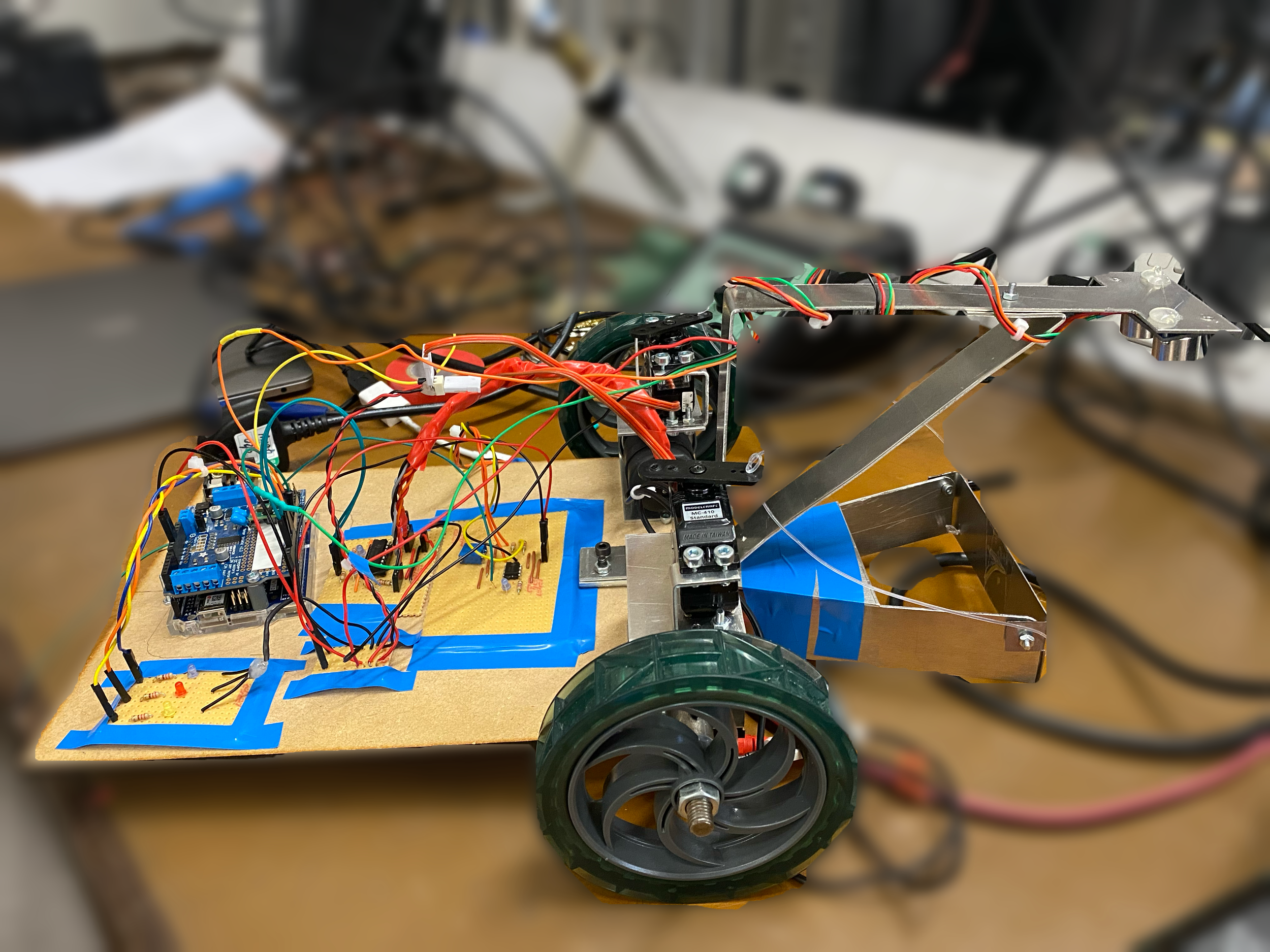

ROBOT VEHICLE
ELECTRICAL ENGINEERING - GROUP PROJECT
Collaborated with teammates in mechanical and software team to design, build and test a robot vehicle capable of following lines, distinguishing between two colours and picking up and delivering blocks to corresponding destinations
Worked as Electrical team (2 members) to design, test and solder the final circuits
The task defined
ELECTRICAL CIRCUIT DESIGN
Arduino Connection Diagram

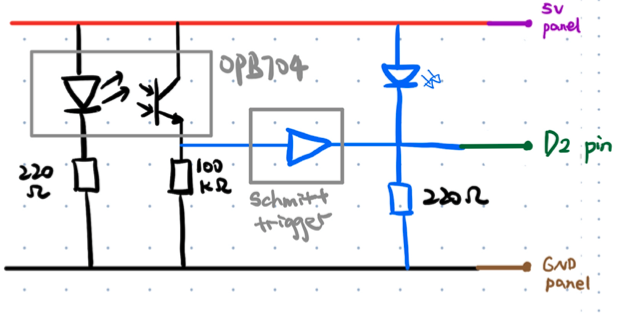

Line Follower Circuit Diagram

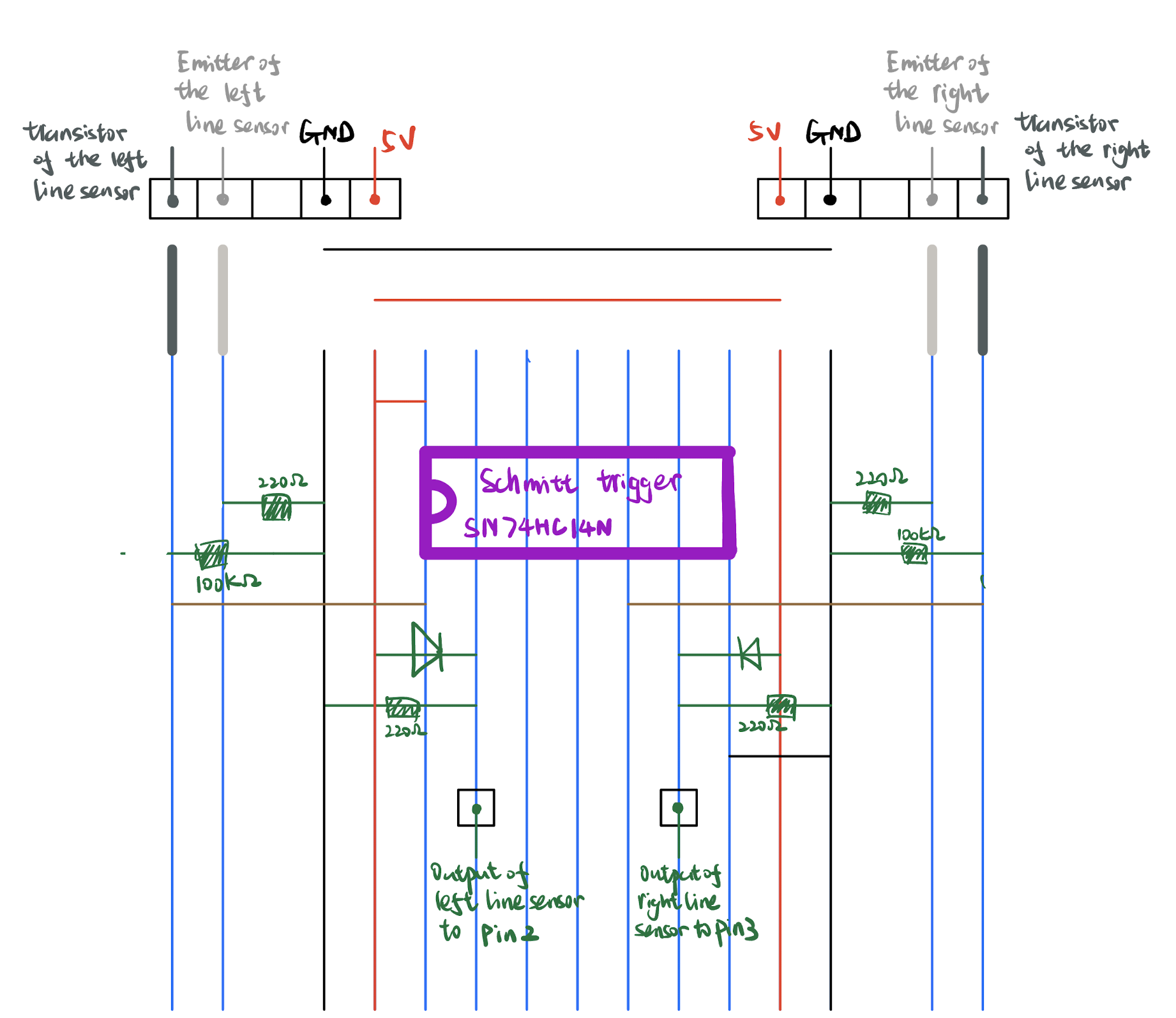

Line Follower Soldering Schematic

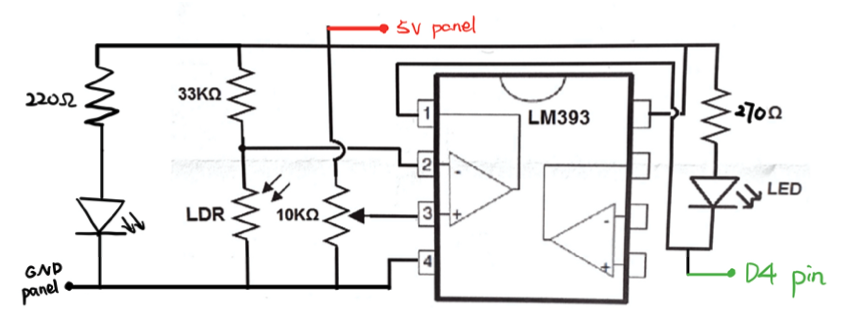

Color Sensor Circuit Diagram
Color Sensor Soldering Schematic
Status-indicating LED panel Circuit Diagram

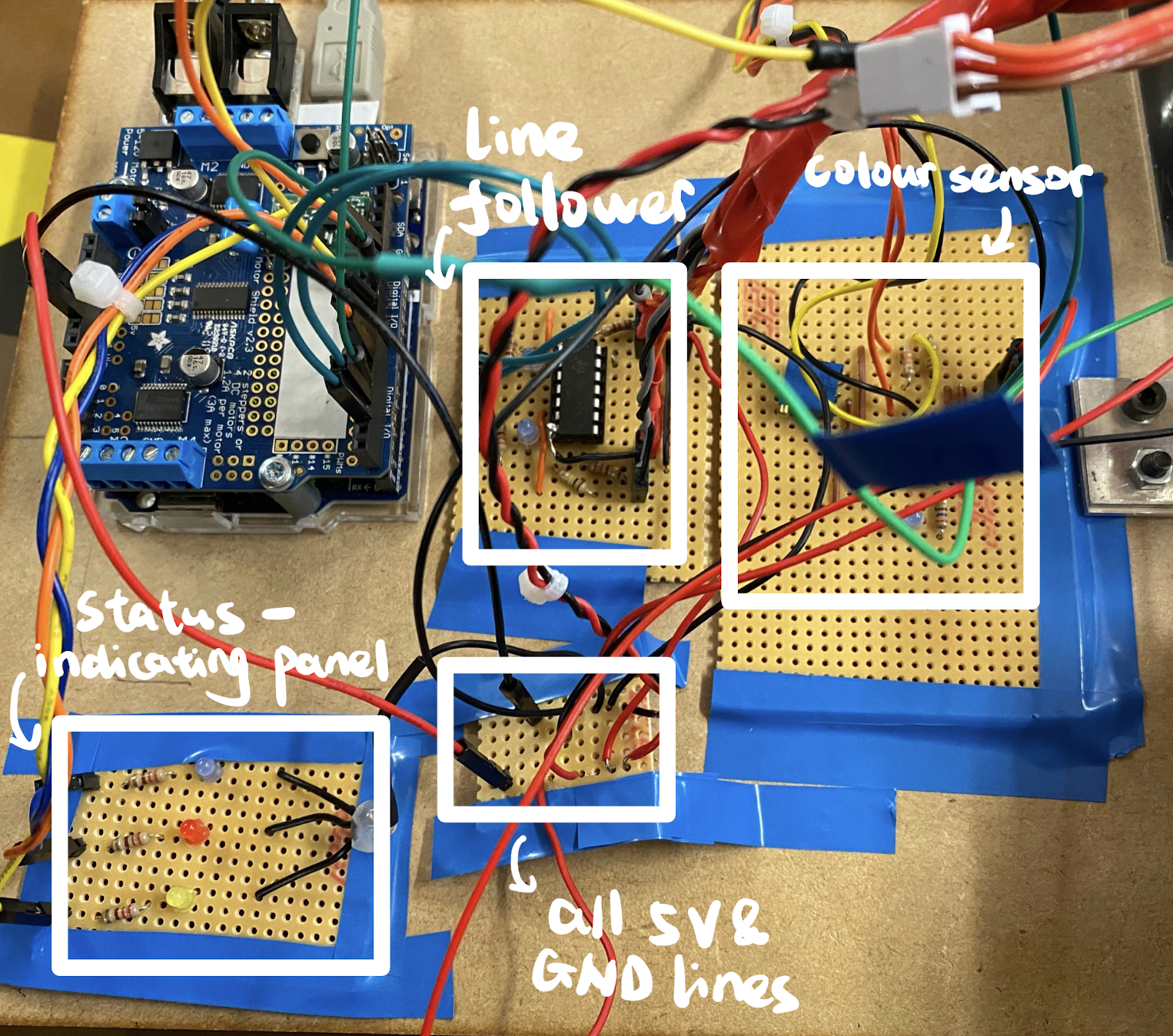

Prototype testing

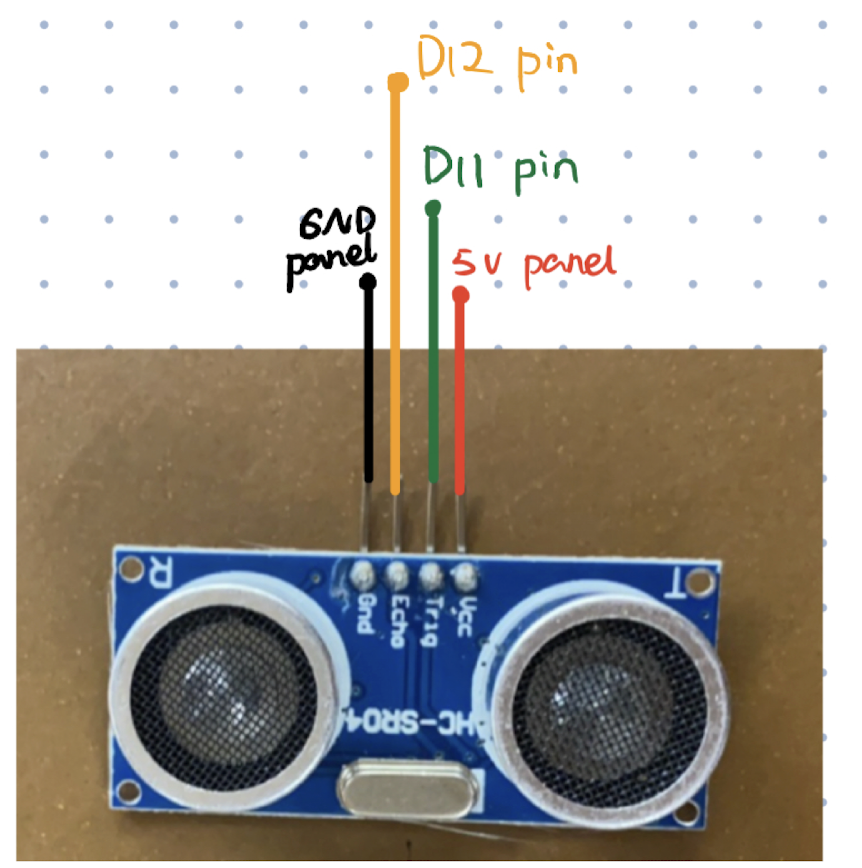

Ultrasonic Sensor Schematic
