Apple Peeler
Redesign a Better Apple Peeler
A redesign of an existing apple peeler with the goal of enhancing both the user experience and the manufacturing process.
Engineering Design
(Coursework for Manufacturing Engineering,
Solo Project)

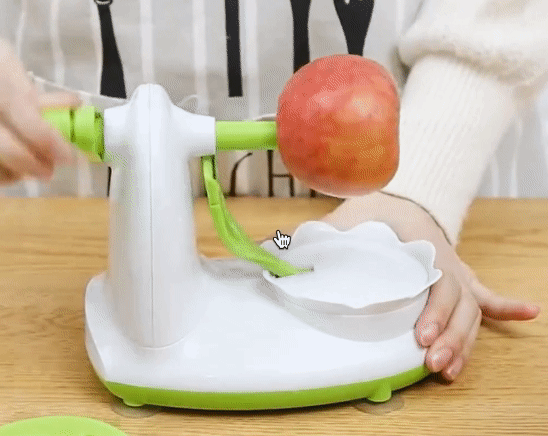

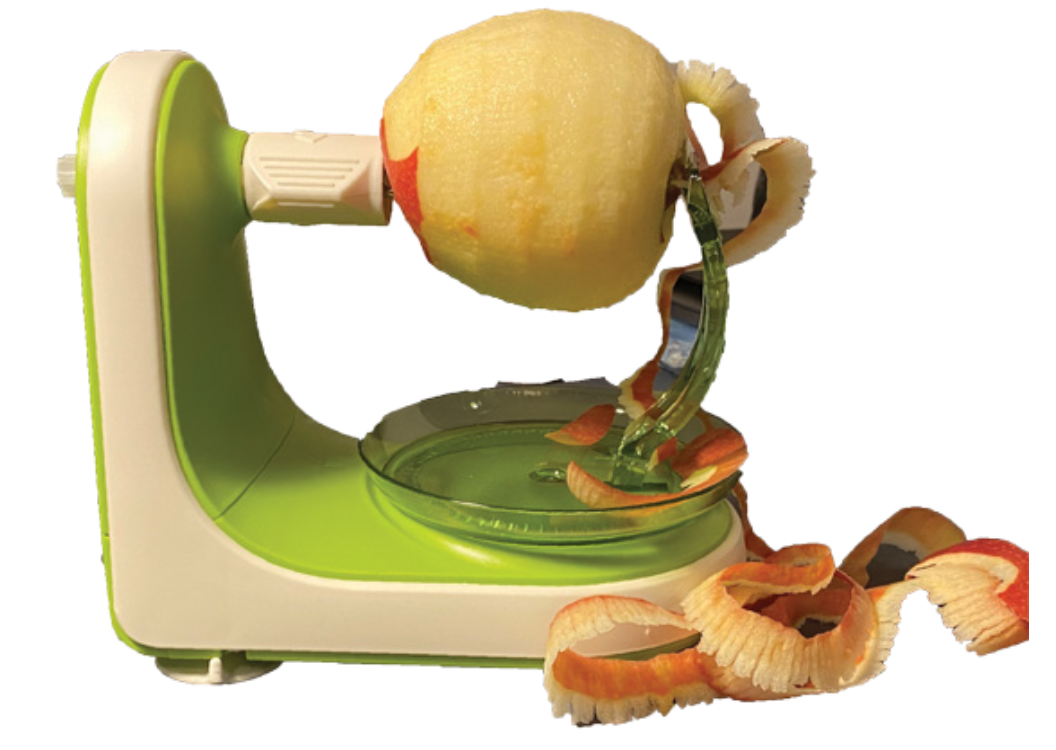

The design of the apple peeler was unnecessarily com- plicated, with an excessive number of components (50) and difficult to assemble (8min assembly time)
The Problem
Concept Development

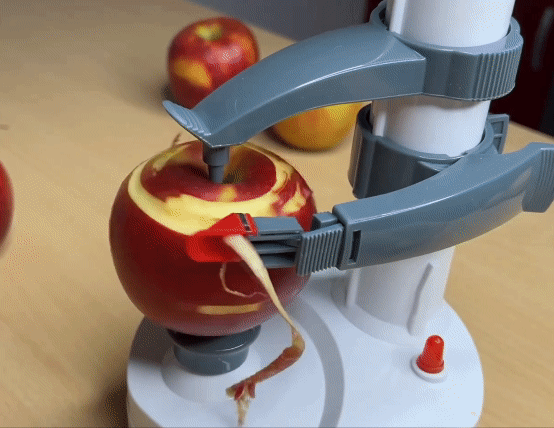

1. Swap needle and blade + Motorize
Switched position for easier apple installa- tion and peeling
The long needles at the base has a user safety risk, and a single fixture may not withstand the motor's torque
2. Add another fixture
3. Change the peeler mechanism

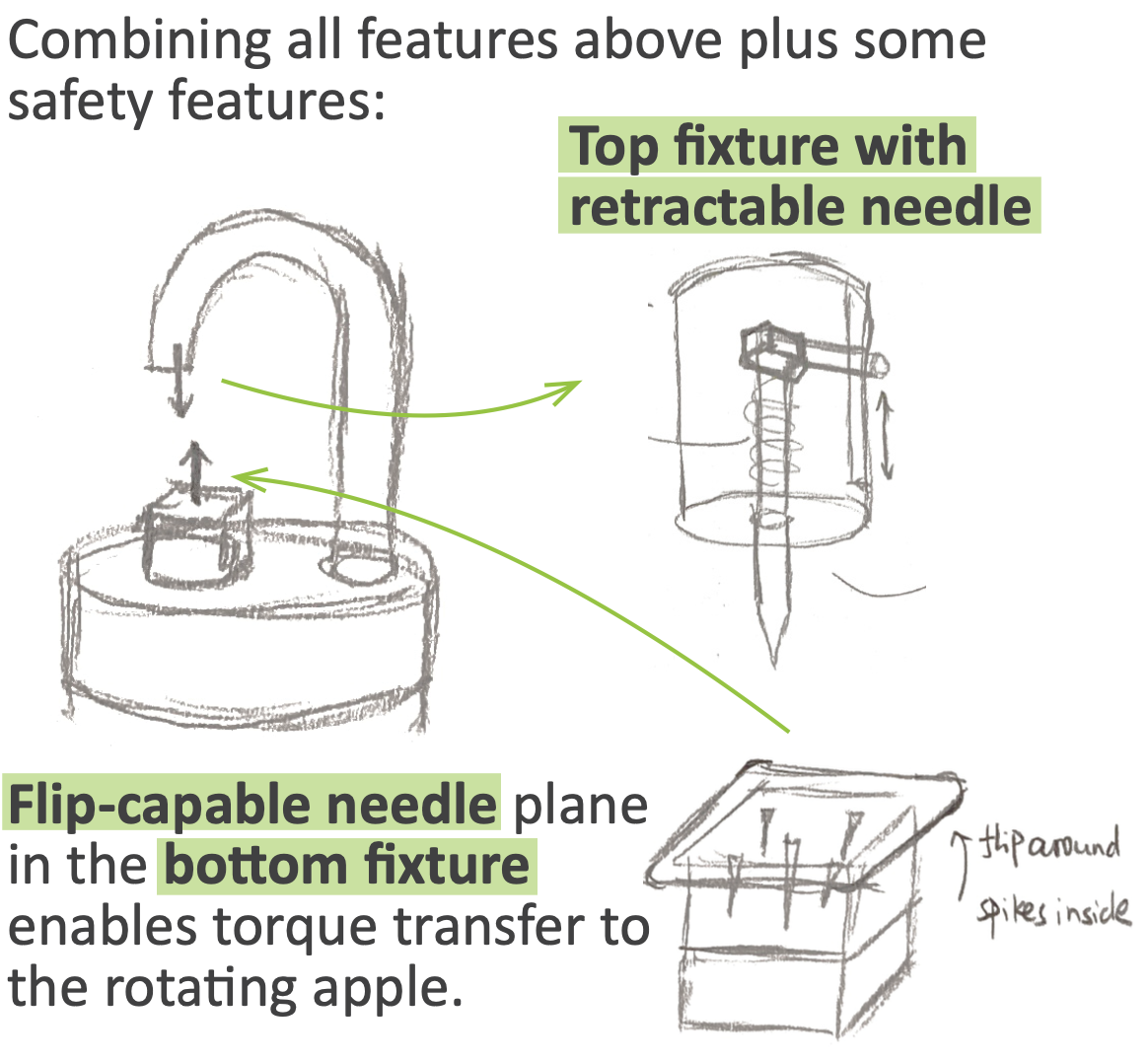

4. Integrate them!
Details

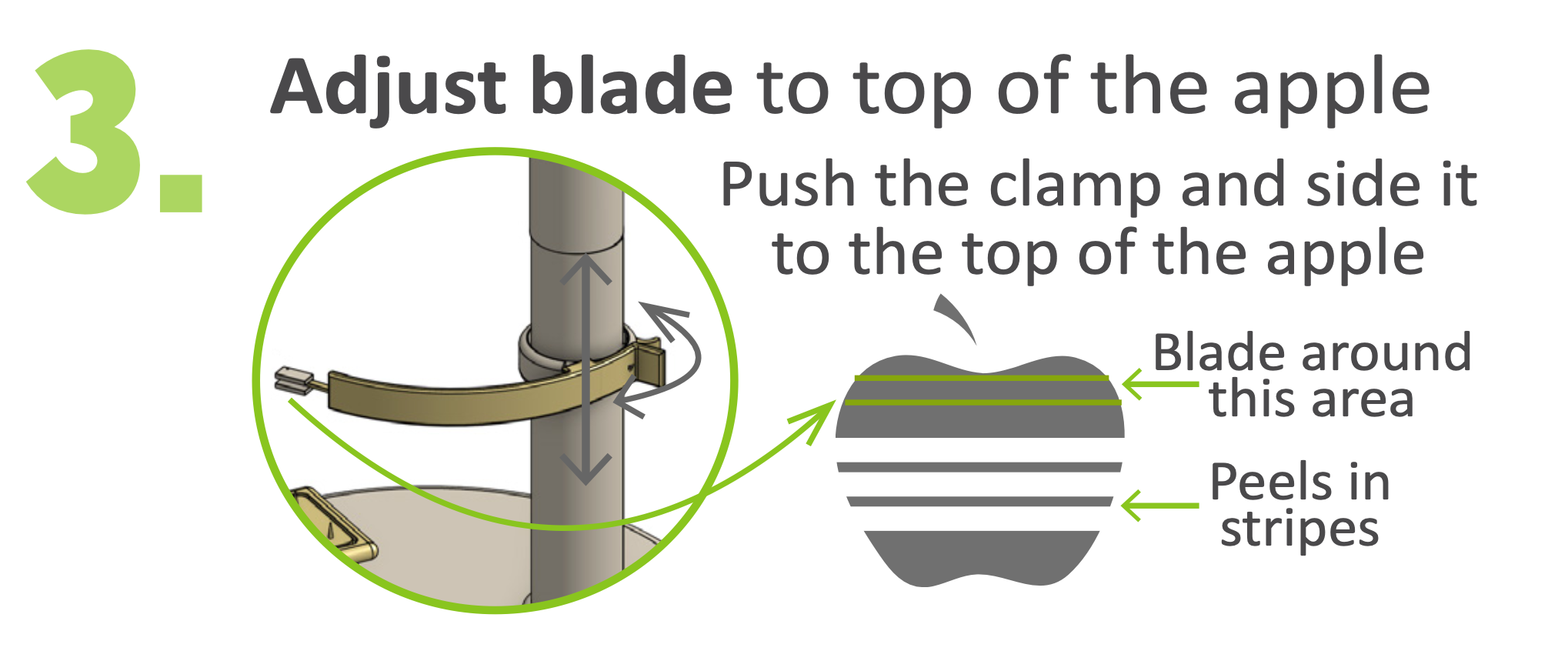

How to use it?
Comparison

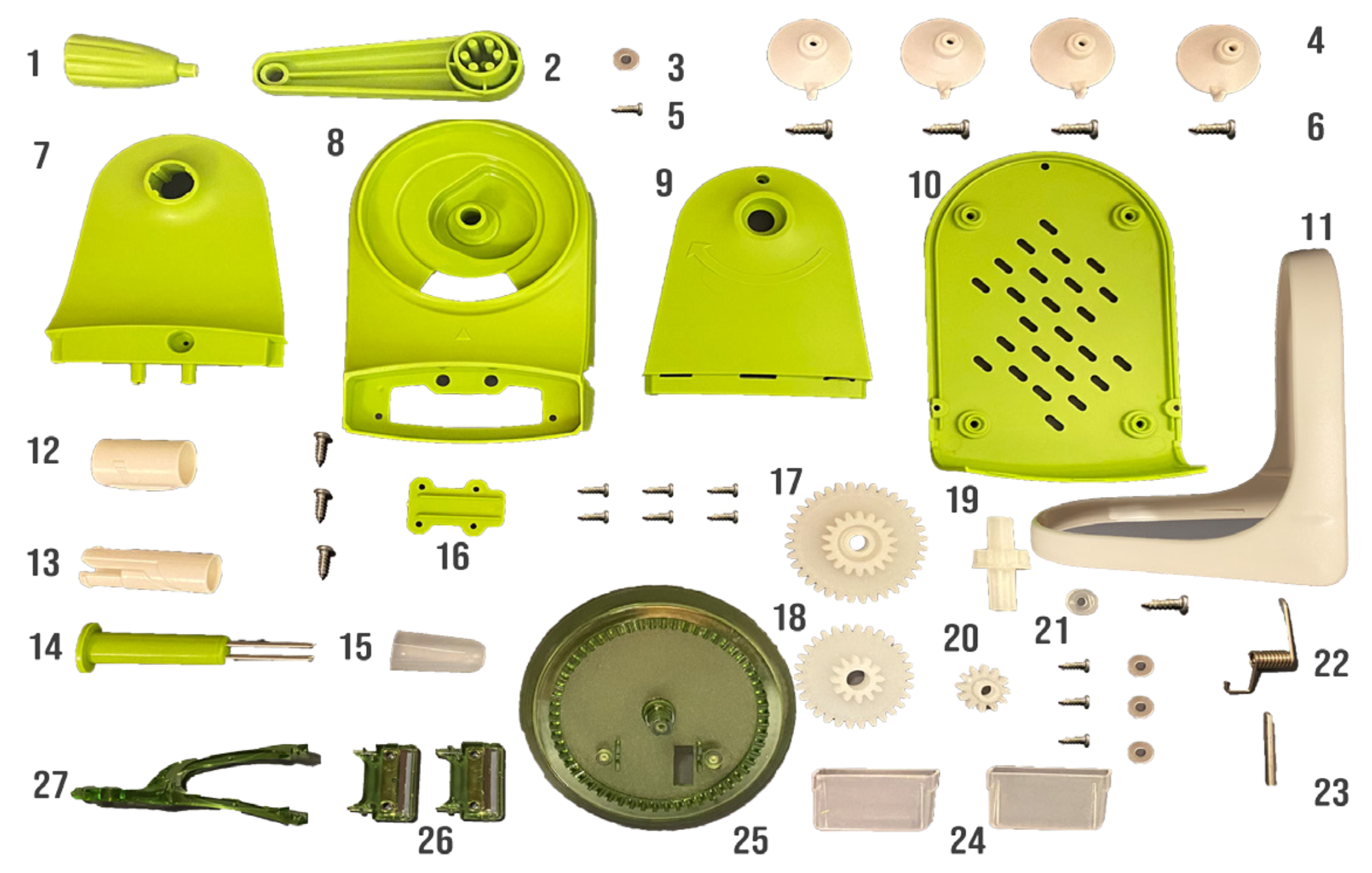

Types of components
50
Components
27
Essential vs Non-essential parts
48 vs 12
VS
